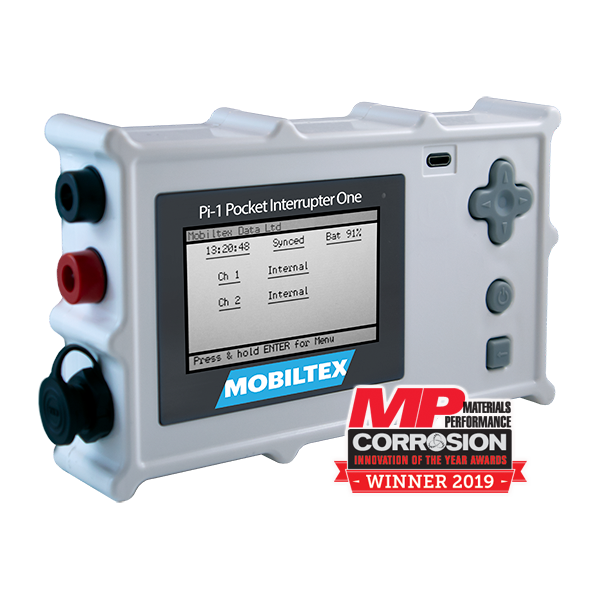

CorTalk Pocket Interrupter One (PI-1)

• Simplify field transportation: The lightweight, pocket-sized design makes it easier to transport enough interrupters for large jobs without bulky equipment and heavy external batteries.
• Reduce charging requirements: The rechargeable internal battery provides up to 15 days of operation, while a half-hour charge can supply almost a full day of runtime.
• Simplify field setup: The graphic display and intuitive menus allow easy operation, with no computer or smart device required to set up or change interruption cycles.
• Expand interruption capabilities: Two independent channels support interruption of CP current sources, with compatibility with MOBILTEX Smart Relays to expand capacity up to 100 A and 100 V.
• Operate in demanding environments: The IP68-rated enclosure protects against dust, dirt and sand and allows short periods of submersion, while the wide operating temperature range supports use in extreme environments.

• Channels: Two independent GPS-synchronized interruption channels
• Interruption rating: Up to 20 V AC/DC and 1 A per channel
• Interruption cycles: Standard ON/OFF cycles from 1–30 seconds
• GPS receiver: 72-channel u-blox 8 Series; maximum time drift of ±36.7 ms
• Smart Relay compatibility: MOBILTEX SRL1 and SRL2; expands capacity up to 100 A and 100 V
• Ingress protection: IP68
• Operating temperature: -40°C to +60°C (-40°F to +140°F)
• Battery: Rechargeable 3,500 mAh lithium-ion; up to 15 days of operation
• Charging: 6–20 V AC/DC multiport or 5 V Micro USB B; up to 8 hours to charge
• Display: 2.7-inch graphic display
• Dimensions: 150 × 88 × 30 mm (5.9 × 3.5 × 1.2 in)
• Weight: 300 g (0.6 lb)
• Enclosure: UV-stable polycarbonate
• Additional features: Programmable external relay control; no computer or smart device required for setup
