Available Configurations

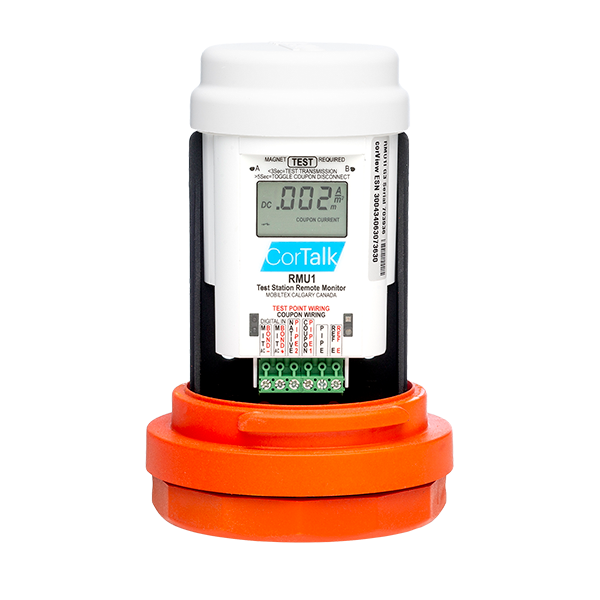

RMU1 – Remote Monitoring Unit
Monitors single or double CP coupons and structure bonds. Measures AC and DC parameters and transmits data and GPS location via cellular or satellite networks.

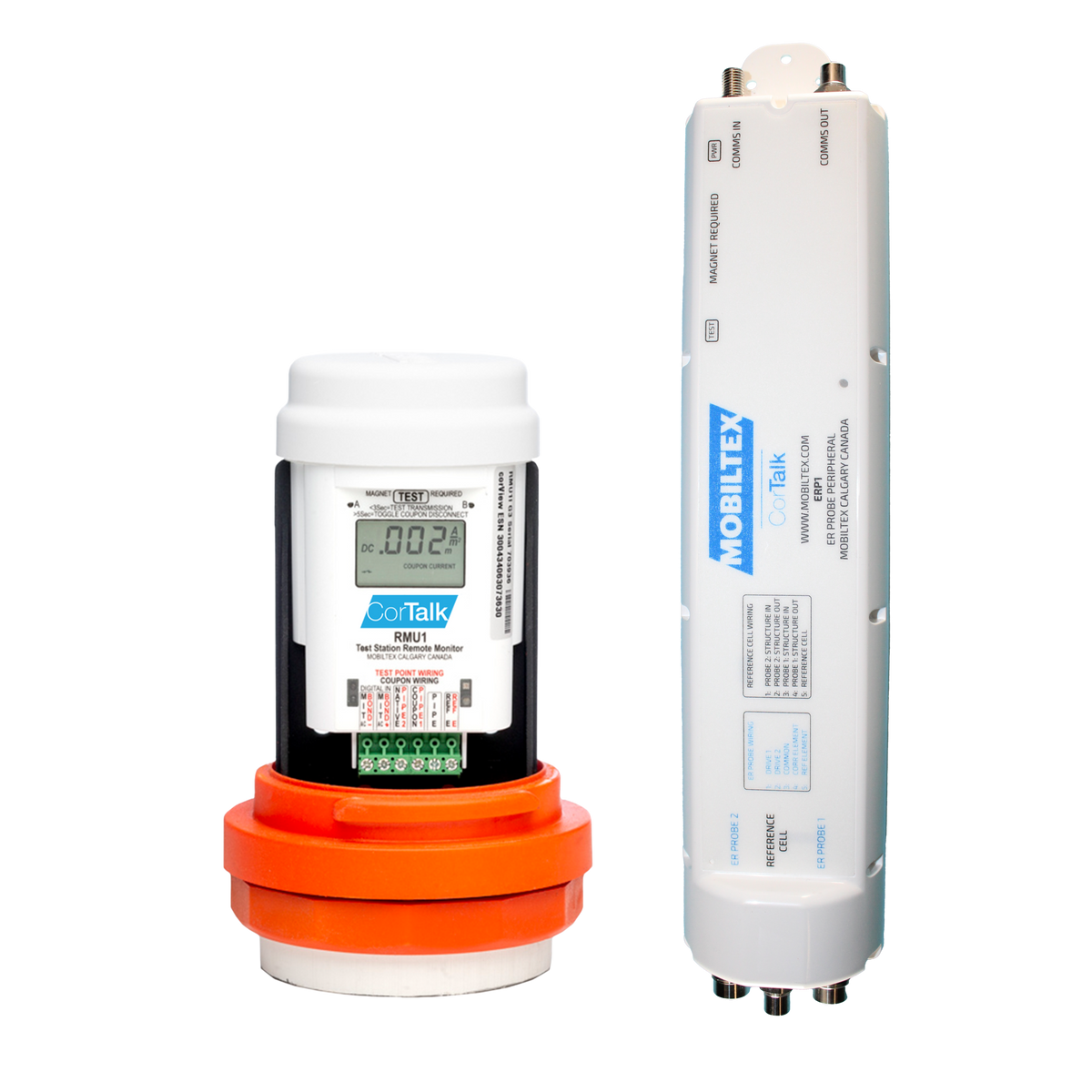

RMU1 + ERP1 – Remote Monitoring with ER Probe Peripheral
Adds high-precision electrical resistance (ER) probe monitoring to an RMU1. Measures metal loss and corrosion growth, with additional probe temperature and probe-to-soil measurement capabilities depending on the connected probe.

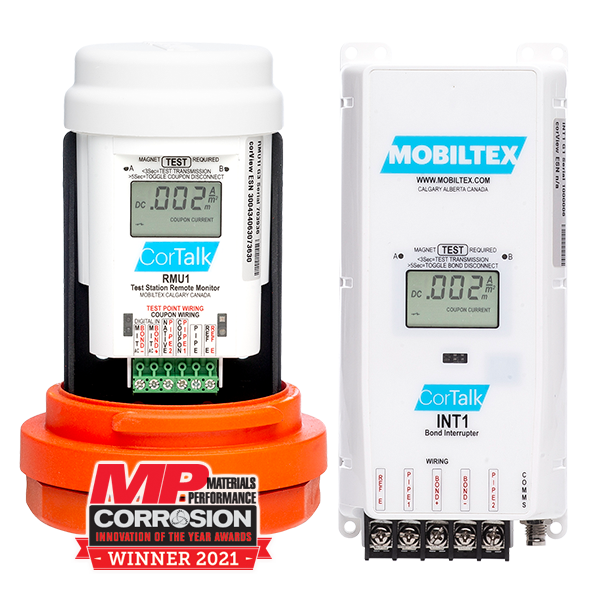

RMU1 + INT1 – Remote Monitoring with GPS-Synchronized Interruption
Adds remote, GPS-synchronized interruption for bonds and sacrificial anodes. Supports remotely controlled interruption activities through CorView, helping reduce the need for portable interrupters during close interval surveys.

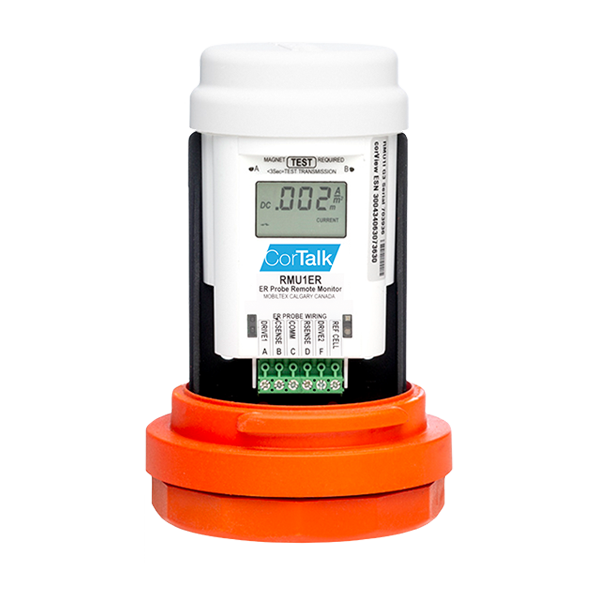

RMU1-ER – Electrical Resistance Probe Monitor
A dedicated monitoring unit for compatible ER probes. Tracks metal loss and corrosion trends and can also measure ER probe potential when connected to a reference cell.

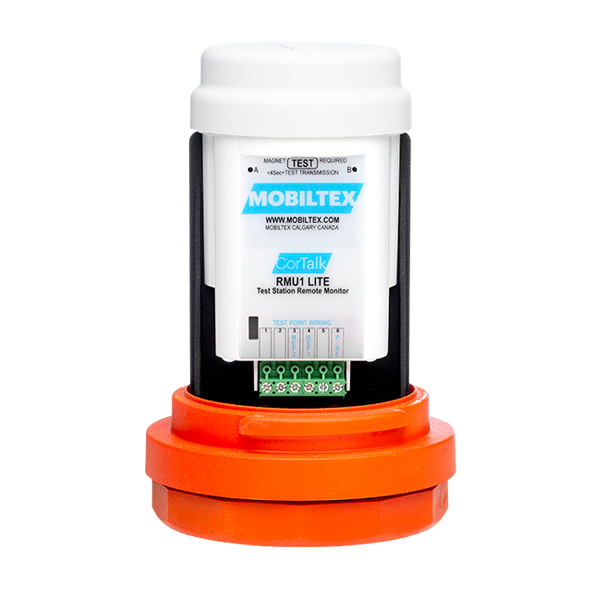

RMU1-LITE – Pipe-to-Soil Potential Monitor
A cost-effective option for remote pipe-to-soil potential monitoring. Supports instant-off potential measurements and dual-reference-cell validation, making it suitable for high-volume deployments.

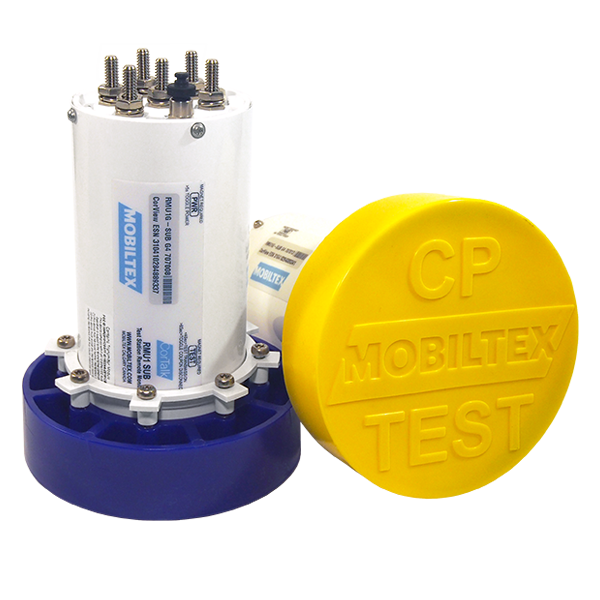

RMU1-SUB – Subgrade Remote Monitoring Unit
Designed for demanding underground installations at pipeline test stations. Monitors pipe-to-soil potential, CP coupons and structure bonds, with IP68 ingress protection and an HS-20 load rating.
Key Features & Specifications
- Monitoring applications: CP coupons, structure bonds, pipe-to-soil potential and ER probes, depending on configuration
- Data transmission: Cellular or satellite communication, depending on model
- Cloud platform: MOBILTEX CorView for data visualization, trending, reporting and supported remote controls
- GPS: Integrated 72-channel u-blox GPS receiver on the documented configurations
- Measurement capability: AC and DC potential, current and bond shunt measurements on applicable models
- Data storage: Up to 1 million reading points on documented RMU1 configurations; ERP1 has its own measurement and reporting specifications
- Typical battery life: Up to 10 years on selected configurations, depending on measurement frequency and operating conditions
- Operating temperature: Generally -40°C to +60°C on the documented models
- Enclosure: Model-dependent, with UV-stable polycarbonate enclosures on the documented RMU1 units
- Subgrade protection: RMU1-SUB provides IP68 protection for immersion up to 1 metre for 7 days and an AASHTO M-306 HS-20 load rating
