CorTalk SUNBIRD – Solar-Powered CP Remote Monitoring

Name: CorTalk Sunbird-CUBE
Brand: MOBILTEX
SKU: CORTALKSNBRD-CUB
Availability: InStock

SKU: CORTALKSNBRD-CUB

Monitor cathodic protection performance and coordinate remote interruption with the CorTalk SUNBIRD family of remote monitoring solutions.

The SUNBIRD series provides remote monitoring and control for cathodic protection (CP) systems, including test posts, bonds and transformer rectifiers. Designed for pipeline operators and corrosion engineers, these devices automatically capture and transmit measurements to the iCPSM4 cloud platform, helping reduce manual inspections and simplify field monitoring. Choose from solar-powered test post monitoring and bond interruption, riser-mounted monitoring, or transformer rectifier monitoring to suit your application.

En savoir plus Lire moins

Variantes du produit: Sunbird-CUBE

Model

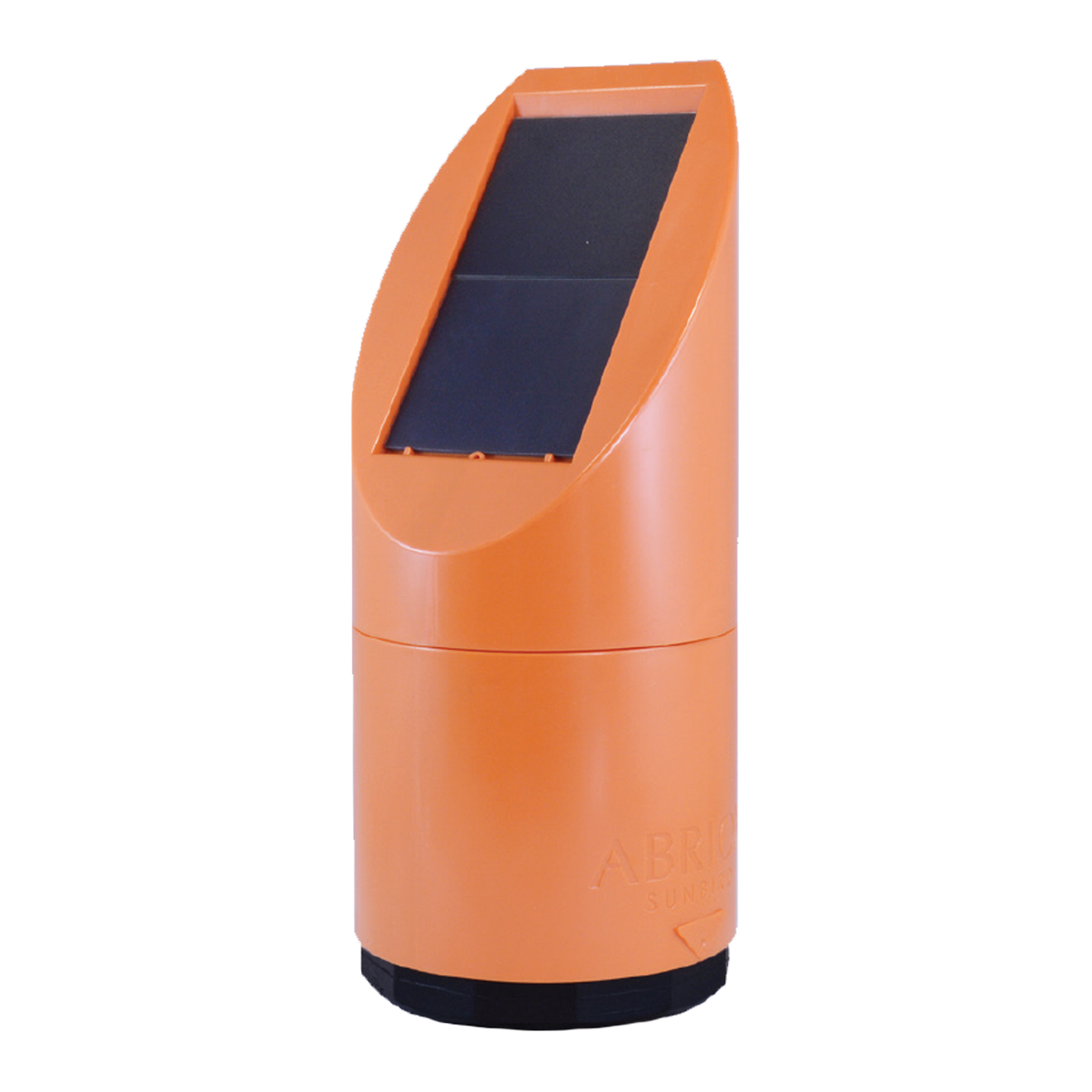

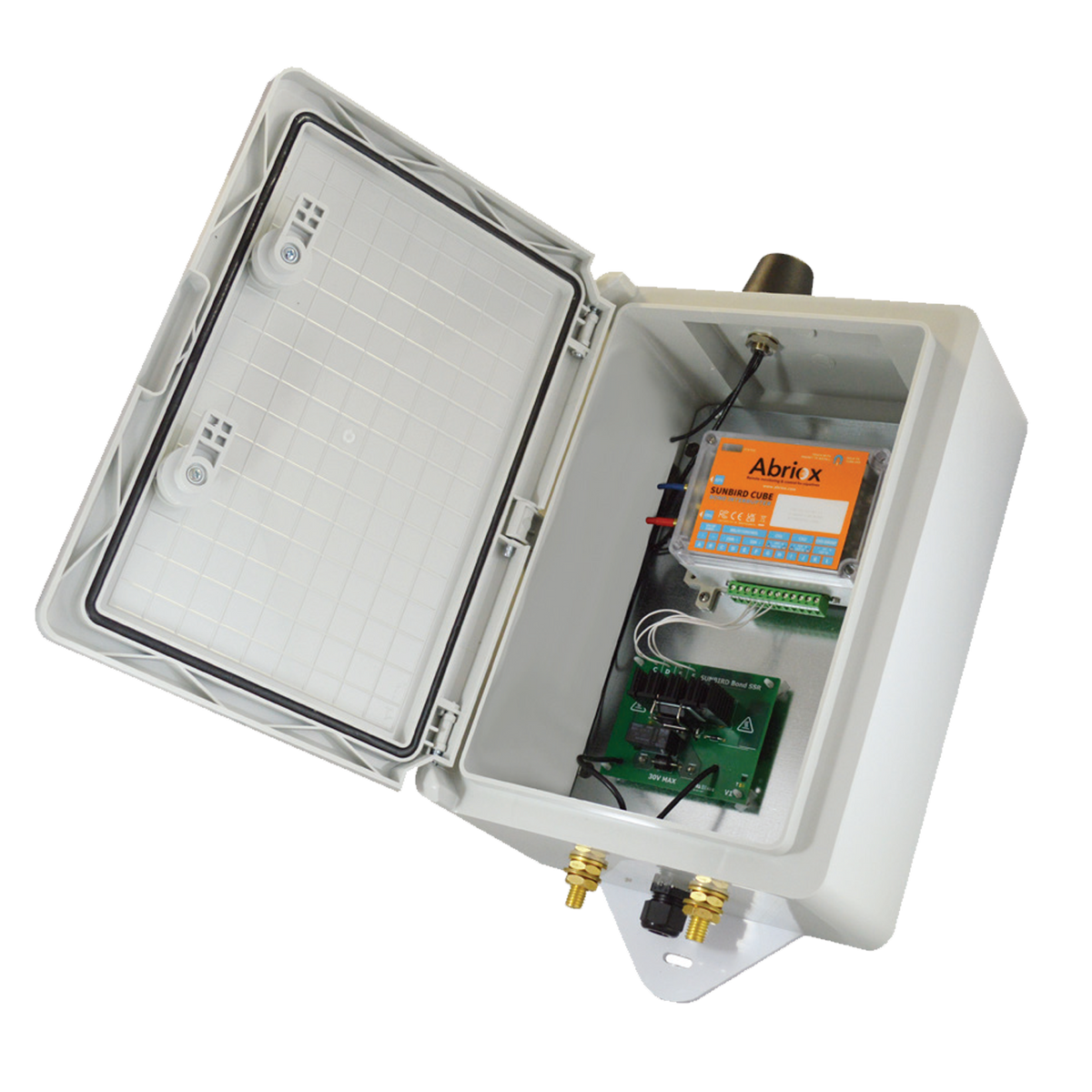

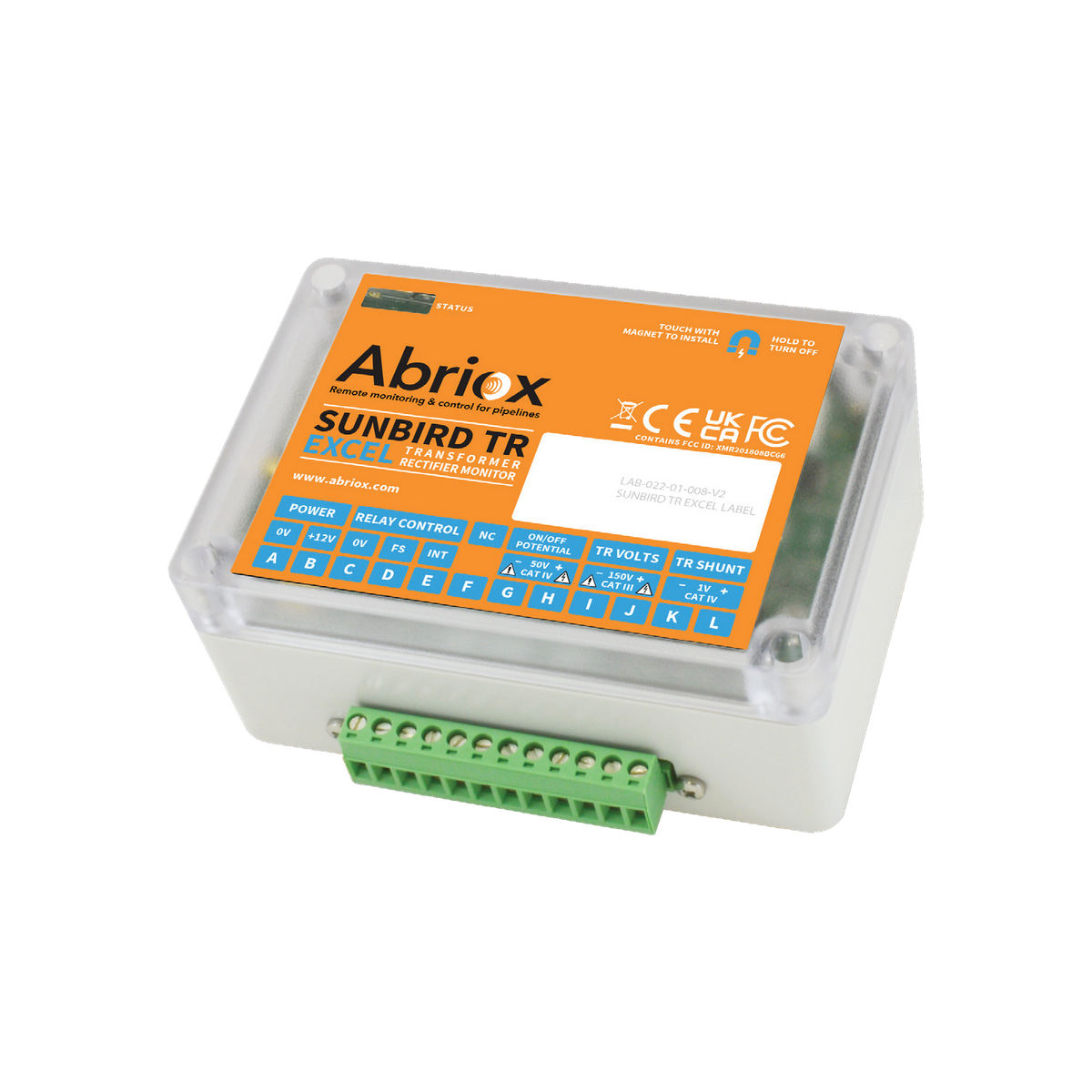

Sunbird-CUBE Sunbird-SP Sunbird-TR

Variantes du produit

Key Benefits

Reduce site visits and operating costs: Automatically collect and transmit CP measurements from remote or difficult-to-access locations.
Improve survey efficiency: Coordinate interruption between compatible remote monitoring units to support Close Interval Potential Surveys (CIPS), DCVG and ON/OFF surveys.
Maintain reliable monitoring: Solar-powered models eliminate routine battery replacement, while the SUNBIRD-TR provides up to 30 days of battery backup during external power outages.
Identify issues sooner: Receive alarms for configured measurement thresholds and, on the SUNBIRD-TR, rectifier power failure.
Simplify deployment: Select a configuration designed for test posts, CP riser posts or transformer rectifiers, with automatic data collection and cloud-based reporting.

Specifications

Applications: CP test posts, bonds, riser posts and transformer rectifiers, depending on model
Monitoring: ON/OFF pipe-to-soil potentials, native coupon potentials and interfering AC currents on applicable models; rectifier output voltage and current on SUNBIRD-TR
Interruption: Remote, synchronized solid-state interruption on supported configurations
Bond switching: Up to 10 A on SUNBIRD-CUBE
Power supply: Solar-powered SUNBIRD-CUBE and SUNBIRD-SP; AC or DC powered SUNBIRD-TR
Battery backup: Up to 30 days on SUNBIRD-TR during external power failure
Communications: Cellular connectivity; SUNBIRD-TR uses NB-IoT
Location tracking: Integrated GPS on the documented test post monitoring models
Ingress protection: IP67/NEMA 6 on SUNBIRD-SP
Data management: iCPSM4 cloud platform for measurement storage, reporting and remote interruption control
Compatibility: Synchronized operation with compatible remote monitoring units; SUNBIRD-TR supports solid-state relays (SSRs) and mercury relays
