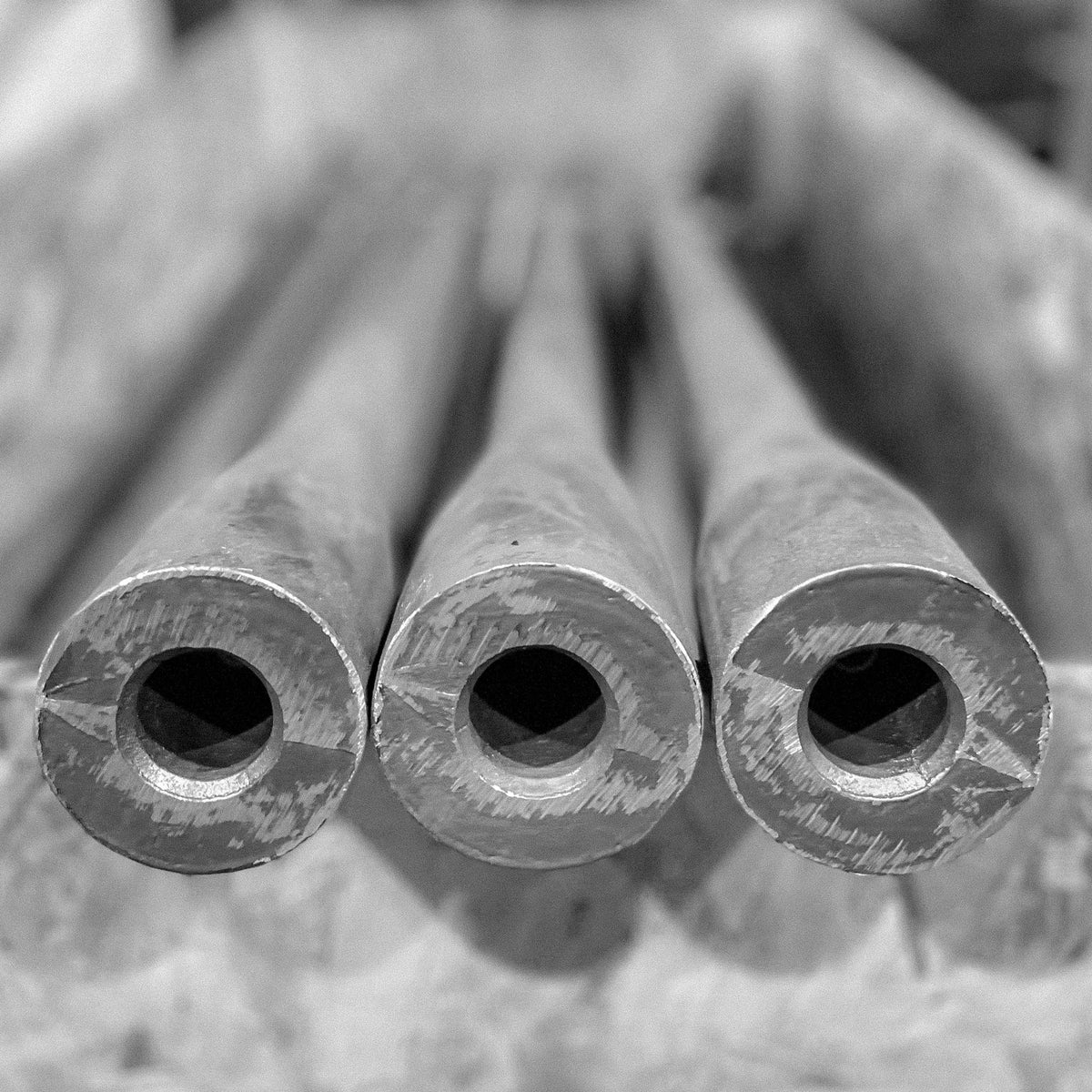

Solid Stick Anode EHA High Silicon Cast Iron

Anotec

Solid Stick Anode High Silicon Cast Iron

SKU: ANOTECEHA

High silicon cast iron stick anodes designed for reliable, durable performance in impressed current cathodic protection systems.

Anotec High Silicon Cast Iron Solid Stick Anodes are designed for dependable performance in impressed current cathodic protection (ICCP) systems. Manufactured using a proprietary chill-casting process, these anodes feature high silicon cast iron that meets ASTM A518 Grade 3 chemistry. Independent laboratory testing confirms enhanced impact resistance compared with sand-cast anodes, while accelerated corrosion testing demonstrates high ampere-year output per pound.

En savoir plus Lire moins

Variantes du produit: EHA

Anode Type
Key Benefits
  • Improve impact resistance: Withstand drop impact tests from more than twice the height of sand-cast anodes.
  • Support long-term performance: Accelerated corrosion testing demonstrates high ampere-year output per pound.
  • Support potable water applications: NSF/ANSI/CAN 61 listed for drinking water system component requirements.
  • Maintain consistent quality: Manufactured, inspected and tested under documented quality control procedures aligned with ISO 9001.
  • Fit different connection requirements: Multiple anode designs and cable connection options accommodate different installation needs.
Specifications
  • Anode material: High silicon cast iron
  • Chemistry: ASTM A518 Grade 3
  • Manufacturing process: Proprietary chill casting in static metal molds
  • Nominal length: 60 in (1,520 mm)
  • Cable connection options:Type 1: Pin, #8 AWG for all models; #6 AWG for EHA, EHM and EHRType 2: Caulked lead, up to #2 AWGType GR: Caulked lead, #2 AWG to 4/0 AWG
  • Nominal discharge current density: 0.75–1.0 A/ft² (8.1–11 A/m²); reduce in soils with osmotic drying potential
  • Tolerances: Weight ±3%; diameter ±6 mm; length ±25 mm
  • Quality and certification: NSF/ANSI/CAN 61 listed; ISO 9001 quality control
Downloads

Product Data Sheet - ENG

Shipping & Returns

Shipping costs and delivery timelines vary by order. All returns require prior written approval and may be subject to a restocking fee.

Please review our Terms & Conditions for complete shipping, return, and warranty details.
