Corrosion Service
Zero Resistance Ammeter
SKU: ZM3P-B
Measure protective current with precision to validate cathodic protection levels and support pipeline integrity assessments.

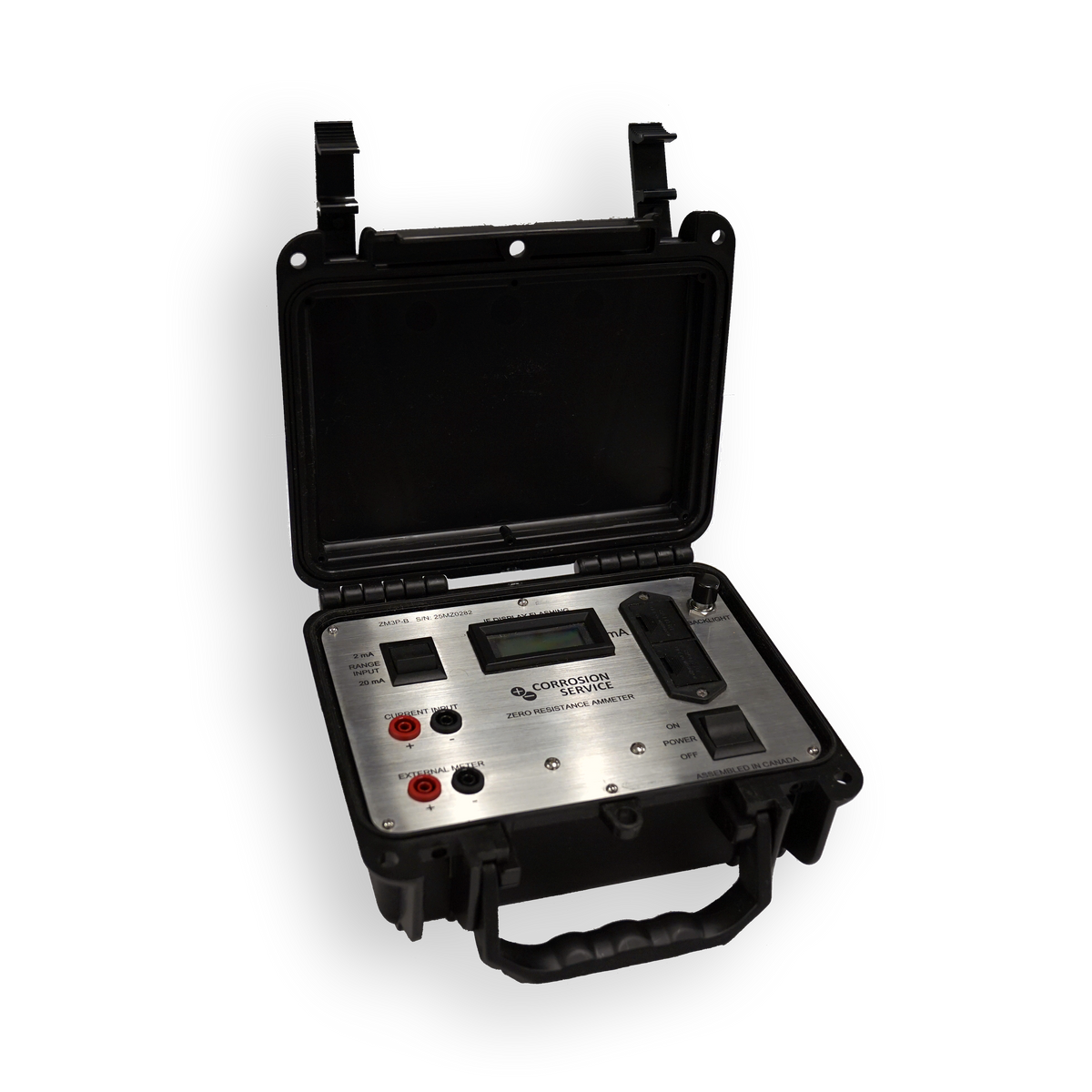

The Corrosion Service Zero Resistance Ammeter (ZRA) is a field micro amp meter specifically designed for the corrosion industry. Used with DC coupons, it measures the small currents flowing between a pipeline and a validation coupon, providing an accurate indication of protective current. By minimizing the loading effect associated with conventional ammeters, the ZRA helps validate corrosion protection data and compare actual measurements with design values.
Variantes du produit: Ammeter Only
Key Benefits
- Validate cathodic protection: Provides an accurate indication of protective current flowing between a pipeline and a DC coupon.
- Reduce measurement uncertainty: Minimizes the loading effect that can introduce errors when measuring small currents.
- Confirm system performance: Helps compare actual corrosion protection parameters with design values.
- Simplify field measurements: Automatic operation requires little specialized training.

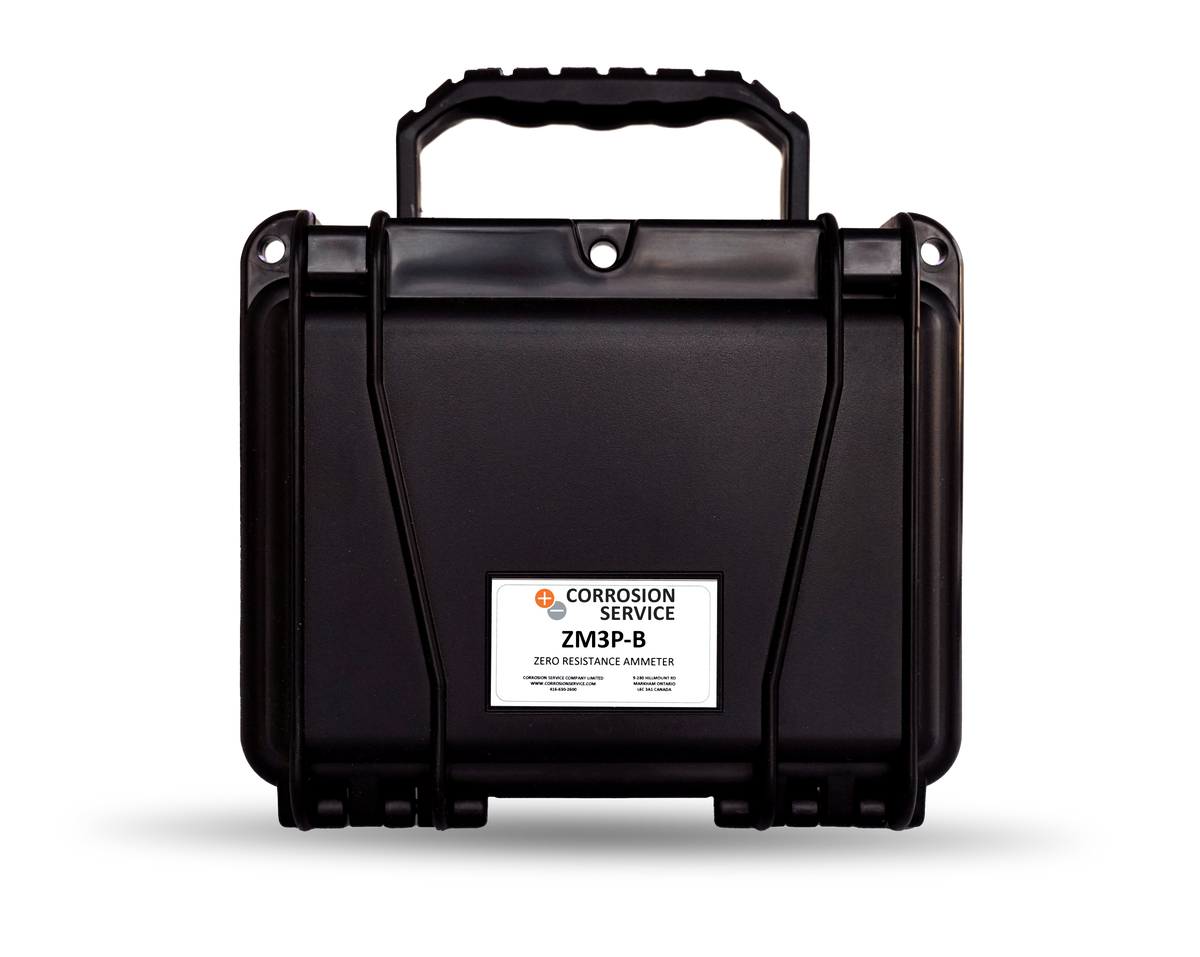

- Support field use: Rugged, lightweight construction and stable operation across a wide temperature range.
Specifications
- Application: Precise DC current measurement for corrosion monitoring and cathodic protection validation
- Compatibility: Designed for use with DC coupons
- Measurement ranges: 0–2 mA and 0–20 mA
- Resolution:0.1 μA on the 2 mA scale1.0 μA on the 20 mA scale
- Accuracy: Better than 0.5% over the entire range
- Operating temperature: -10°C to +50°C (14°F to 122°F)
- Dimensions: 224 × 191 × 97 mm (8.8 × 7.5 × 4 in.)
- Weight: 1,180 g (2.6 lb.)
- Options: Extended measurement and temperature ranges available upon request
Optional Calibration Certificate
A calibration certificate is available for purchase separately. Please request this option when ordering.
