MOBILTEX

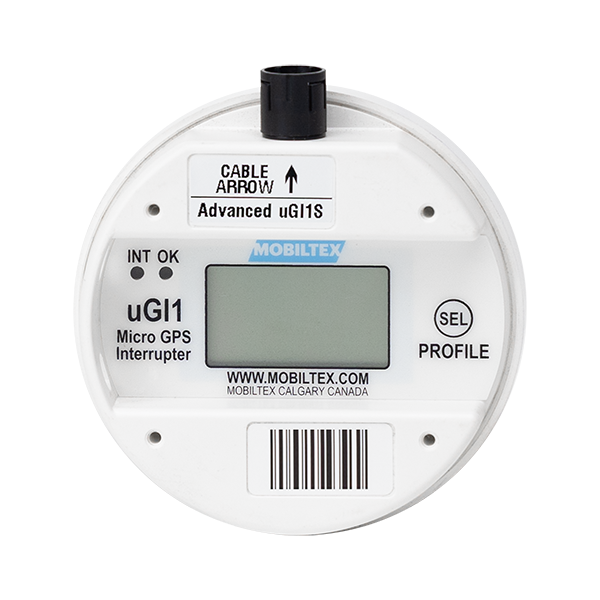

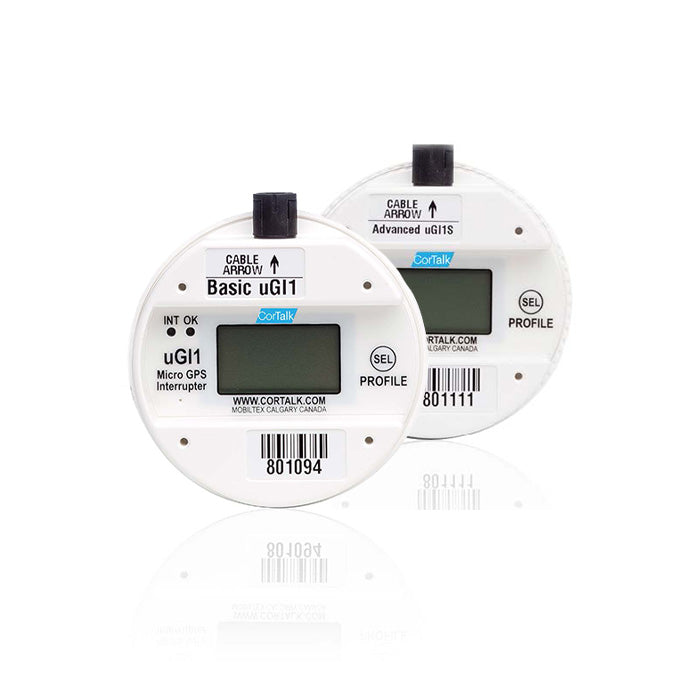

CorTalk uGI1-B / uGI1-S – GPS Current Interrupter

SKU: CORTALK UGI1-B

Precisely synchronized cathodic protection rectifier interruption with two options: local data logging with the uGI1-B Basic or remote satellite communication and control with the uGI1-S Satellite.

The MOBILTEX CorTalk uGI1 series provides precise, GPS-synchronized rectifier interruption for cathodic protection (CP) surveys. Both models offer configurable interruption profiles, event logging and a compact, weatherproof design for quick installation on rectifiers. Choose the uGI1-B Basic for local operation and USB data retrieval, or the uGI1-S Satellite for two-way satellite communication, remote interruption control and alarm reporting through the CorView platform. Both models can be expanded with an optional MOBILTEX Smart Relay for additional monitoring capabilities.

Read more Read less

Product variants: UGI-B

Model
Key Benefits
  • Improve interruption accuracy: GPS synchronization supports precise timing and repeatable rectifier interruption across uGI1 units.
  • Simplify field installation: Compact enclosures with magnetic mounting feet allow quick installation on rectifiers.
  • Customize interruption settings: Configure up to 10 interruption profiles using a compatible Apple or Android device.
  • Choose the level of control you need: The uGI1-B supports local event logging and USB data retrieval, while the uGI1-S enables remote configuration and control via satellite communication and CorView.
  • Respond to faults remotely: The uGI1-S provides remote fault alarm reporting to help technicians identify issues and respond quickly.
  • Expand monitoring capabilities: An optional MOBILTEX Smart Relay enables additional monitoring, including load current and interruption faults; the uGI1-S can also monitor relay temperature and synchronization status.
  • Withstand demanding field conditions: Weatherproof construction, lightning, surge and overvoltage protection, and a broad operating temperature range support reliable field operation.
Specifications
  • Operating voltage: 8–52 V DC or 6–36 V AC
  • Maximum power consumption: 10 W
  • Timing accuracy: ±0.5 ms with AC line synchronization disabled; +8.8/-0.5 ms with AC line synchronization enabled
  • Interruption profiles: 10 configurable profiles
  • ON/OFF timing: 100–59,900 ms in 1 ms increments
  • Cycle phase order: Programmable, OFF first or ON first
  • Event log memory: Up to 2,000,000 entries
  • GPS receiver: 56- or 72-channel u-blox
  • Wireless interface: Bluetooth Smart Ready 4.0
  • PC connection: USB 2.0
  • uGI1-S satellite communication: Iridium SBD9603N module
  • Operating temperature: -22°C to +70°C (-4°F to +158°F)
  • Storage temperature: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 0–100% RH, non-condensing
  • Maximum altitude: 5,000 m above sea level
  • Enclosure: UV-stable, wide-temperature polycarbonate
  • Dimensions, uGI1-B: 83.5 × 79.5 × 30.6 mm (3.3 × 3.12 × 1.2 in)
  • Dimensions, uGI1-S: 83.5 × 79.5 × 45.0 mm (3.3 × 3.12 × 1.77 in)
  • Weight, uGI1-B: 100 g (0.22 lb)
  • Weight, uGI1-S: 172 g (0.38 lb)
  • Relay compatibility: Supports solid-state or mechanical relays, with NO or NC contacts
  • Relay drive: 6 or 12 V DC; 0.5 A maximum
