Z-Series Tublar Anode 2260Z High Silicon Cast Iron

Anotec

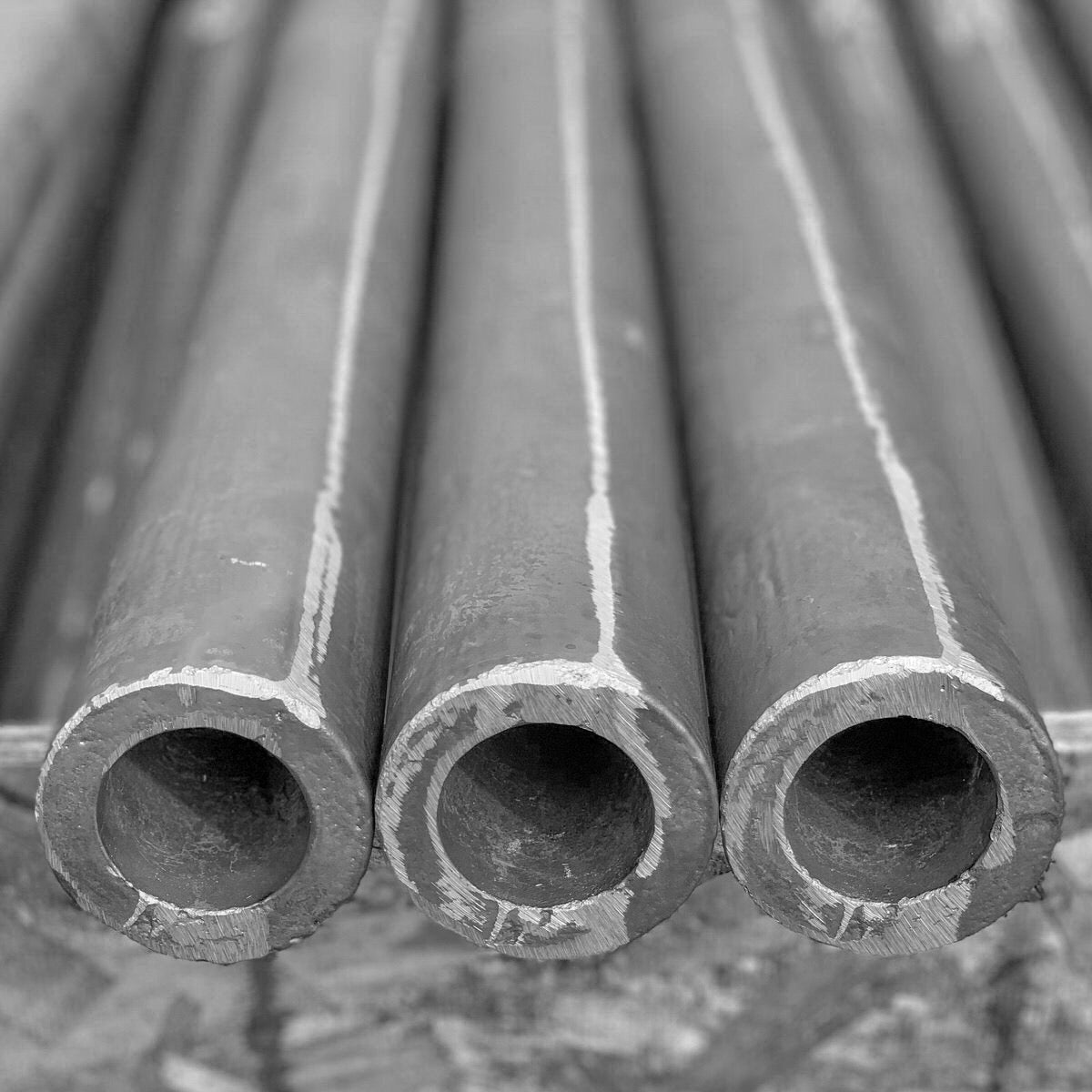

Z-Series Tubular Anode High Silicon Cast Iron

SKU: ANOTEC2260Z

High-performance tubular anodes engineered for reliable impressed current cathodic protection in deep well and other demanding applications.

Anotec High Silicon Cast Iron Tubular Anodes are designed for dependable, long-lasting performance in impressed current cathodic protection (ICCP) systems. Manufactured using a proprietary chill-casting process, these anodes feature high silicon cast iron meeting ASTM A518 Grade 3 chemistry, with reinforced connection zones and a low-resistance cable connection. Multiple lengths and diameters are available to suit different installation and design requirements.

Read more Read less

Product variants: 2260 Z

Anode Type
Key Benefits
  • Improve anode service performance: Accelerated corrosion testing indicates high ampere-year output per pound compared with competing products.
  • Reduce installation and handling damage: Thicker walls and an expanded head improve impact resistance and shipment reliability.
  • Maintain secure cable connections: A hydraulically pressed zinc connector withstands cable tension up to 2,200 lb.
  • Support efficient deep well installations: Compact diameters help maximize anode utilization in deep well applications.
  • Support potable water applications: NSF/ANSI/CAN 61 listing confirms conformity with applicable drinking water system component requirements.
Specifications
  • Anode material: High silicon cast iron
  • Chemistry: ASTM A518 Grade 3
  • Manufacturing process: Proprietary chill casting in static metal molds
  • Cable connection: Hydraulically pressed zinc connector in an internal taper
  • Connection resistance: Less than 0.001 ohms
  • Cable connection strength: Up to 2,200 lb (approximately 1,000 kg) force
  • Nominal discharge current density: 0.75–1.0 A/ft² (8.1–11 A/m²); reduce current density in soils with osmotic drying potential
  • Certifications and quality: NSF/ANSI/CAN 61 listed; manufactured under ISO 9001 quality control procedures
  • Weight tolerance: ±3%
  • Diameter tolerance: ±6 mm
  • Length tolerance: ±25 mm
Downloads

Product Data Sheet - ENG
